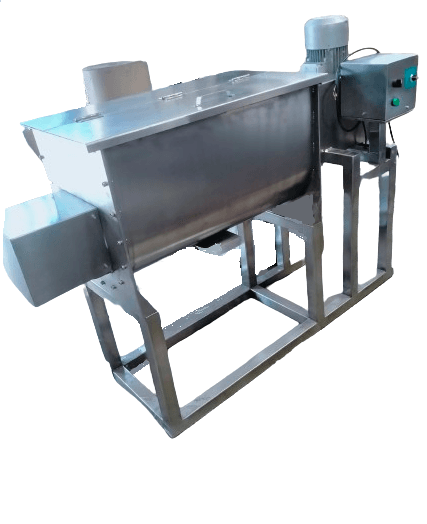

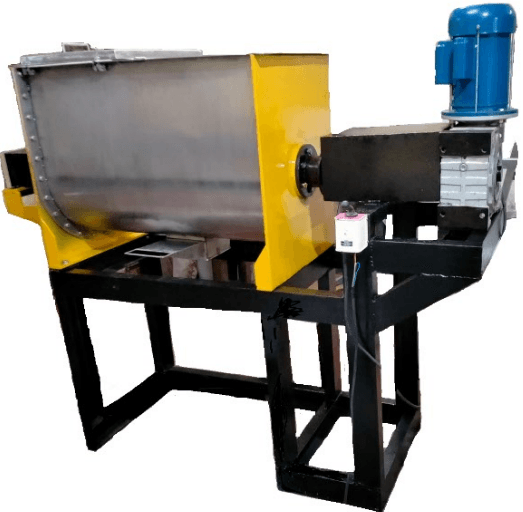

Ribbon Blender 200 LTRS (80 to 100 KG per Batch) STD. Model

100 KG / BATCH TECHNICAL SPECIFICATION No.2MODEL RB 200 LTRSRIBBON BLENDER STD. MODEL1TOTAL VOLUME250 Ltrs2WORKING VOLUME200 Ltrs3APPLICATIONMIXING4CAPACITY (APPROX.)100KG/ BATCH   (AS PER 0.6 G/CM3 DENSITY)5BRIM SIZEWIDTH – 480MM, LENGTH 900MM, HEIGHT – 630MM6BLENDER OVERALL SIZE IN MM (APPROX.)WIDTH – 750 MM, LENGTH 1550MM, HEIGHT – 1450MM7BOTTOM CLEARANCE500-600 MM9M.O.C. OF U SHAPE BODYU SHAPE COVER–2 TO 3 MM THK SS 304,   TOP COVER  2 MM THK = SS304U SHAPE PATTY  40x10THK  SS 304BOTH  SIDE END PLATE 10 THK  SS304 WITH SS304 2 MM CLIDDEDANGLE SUPPORT FOR U SHAPE COVER 40X40X5THK SS 304M.O.C. OF RIBBON SHAFTRIBBON SHAFT MAIN PIPE Ø65X5THK  SS304RIBBON SPOKES (PIN) DIA. 16 MM = SS 304BOTH SIDE SOLID SHAFT DIA 55 = M.S.RIBBON BLADE PATTY OUTSIDE 50X8THK & INSIDE 25X6THK MM = SS 304M.O.C. OF  STRUCTUREC CHANNEL  = 100 X 50  M.M.BOTTOM BASE PLATE 10 THK = M.S.MOTOR GEAR BOX HIDE FRAME SQ. PIPE 25X2.6 THK X 1.2THK SHEET  = M.S. & CRCAMOTOR BASE PLATE 12 MM THK = MS10DRIVE ASLYaMOTOR3 HP, 1440  RPM, FOOT MOUNTED, SINGLE PHASEbGEAR BOXGEAR BOX  PHASE 20 RPMcSPEED20 RPM FIX SPEEDdBIG SPROCKET4 INCHeSMALL SPROCKET3 INCHfSTUFFING BOX OR UCF BEARING2 NOS M.S.gPLUMMER BLOCKSNC 511  ( 2 NOS)11INLETTOP DOOR12OUTLETSLIDDING FLAP13VOLTAGE215V AC, 1 PHASE14MACHINE TOTAL WEIGHT (APPROX)16015CONTROL PANEL1REVERSE FORWARD SWITCH*Price/ Machine Rs. 2,15,0,00/-RS. TWO LAKHS FIFTEEN THOUSAND ONLY OPTIONAL EXTRA 1) VFD  = RS. 16000 /-  (VARIABLE FREQUENCY DRIVE)
